Description

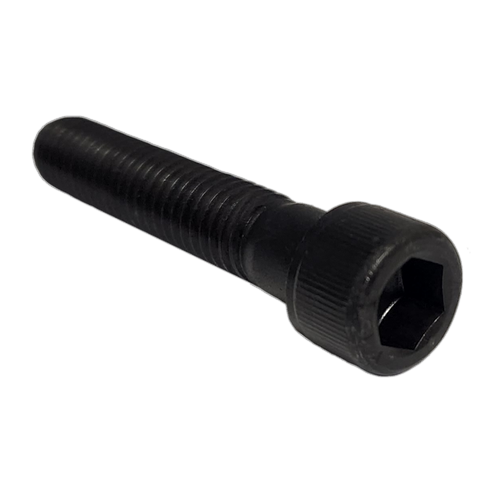

The #10-24 Socket Head Cap Screw is a compact, high-strength fastener designed for precise and efficient installation in tight or recessed assemblies. Featuring a cylindrical socket head and an internal hex drive, this fastener allows for controlled torque application and reliable clamping force—ideal for light-duty mechanical, electrical, and structural applications requiring a flush and secure fit.
Specifications
-
Thread Size: #10-24 (Unified National Fine)
-
Head Type: Cylindrical socket head with internal hex drive
-
Drive Type: Hex socket (Allen)
-
Length: Available in standard lengths (typically from 1/4" to 2")
-
Material: Alloy steel; also available in stainless steel, zinc-plated, or black oxide finishes
-
Finish Options: Black oxide, plain, zinc-plated, or stainless
-
Grade: Typically Grade 8 (hardened alloy steel) or 18-8 / 316 stainless steel for corrosion resistance
Key Features
-
Compact Cylindrical Head: Provides a strong, recessed fit for applications requiring flush mounting or installation in counterbored holes.
-
Precision Threading: #10-24 fine thread offers secure engagement in shallow tapped holes and vibration-prone assemblies.
-
Efficient Torque Transfer: Internal hex drive allows for controlled tightening without slipping or head damage.
-
Durable Materials and Finishes: Multiple finish options offer corrosion protection and durability in indoor and outdoor environments.
-
Versatile and Reliable: Compact design offers strength without bulk for light-duty structural and mechanical needs.
Typical Applications
The #10-24 Socket Head Cap Screw is ideal for light-duty precision applications across industries such as:
-
Electrical Enclosures and Panels
-
Instrumentation and Assembly Fixtures
-
Compact Machinery and Subframes
-
Robotics, Brackets, and Mounting Plates
-
Consumer Electronics and Hardware
-
3D Printing, Prototyping, and Custom Fabrication
