Description

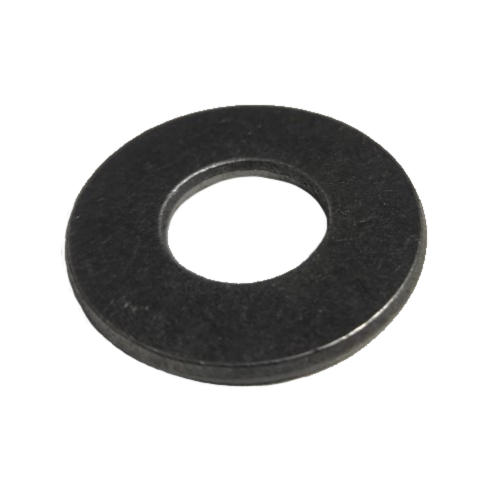

The 1-1/8" USS Flat Washer is a robust, general-purpose component designed to be used with 1-1/8-inch diameter bolts, screws, and studs. Engineered to United States Standard (USS) dimensions, this flat washer features a wide outer diameter and solid thickness, making it ideal for distributing fastener loads and minimizing surface damage in heavy-duty applications.
Specifications:
-
Inner Diameter (I.D.): 1-3/16"
-
Outer Diameter (O.D.): 3"
-
Thickness: 5/16" (nominal)
-
Standard: USS (United States Standard)
-
Material: Typically low carbon steel; also available in stainless steel, brass, or specialty alloys
-
Finish Options: Plain, zinc-plated, hot-dip galvanized, black oxide, or other protective coatings
Key Features:
-
Wider Bearing Surface: Large outer diameter effectively distributes load over a greater area, reducing material deformation and wear.
-
Sized for 1-1/8" Fasteners: Precision clearance accommodates installation tolerance while ensuring strong alignment.
-
USS Standard Profile: Offers a looser fit compared to SAE washers, ideal for structural and general-purpose fastening needs.
-
Flat and Durable Surface: Provides consistent torque and reduces galling during tightening.
-
Corrosion-Resistant Finishes: Suitable for a range of indoor and outdoor applications, including harsh or marine environments.
Typical Applications:
The 1-1/8" USS washer is commonly used in demanding industrial and structural settings, including:
-
Heavy steel fabrication and infrastructure
-
Agricultural, mining, and construction machinery
-
Bridge, highway, and utility installations
-
Trailer and vehicle frame assembly
-
OEM machinery and MRO operations
